- Dimensions and weight are for reference only; actual product may vary.
Description:

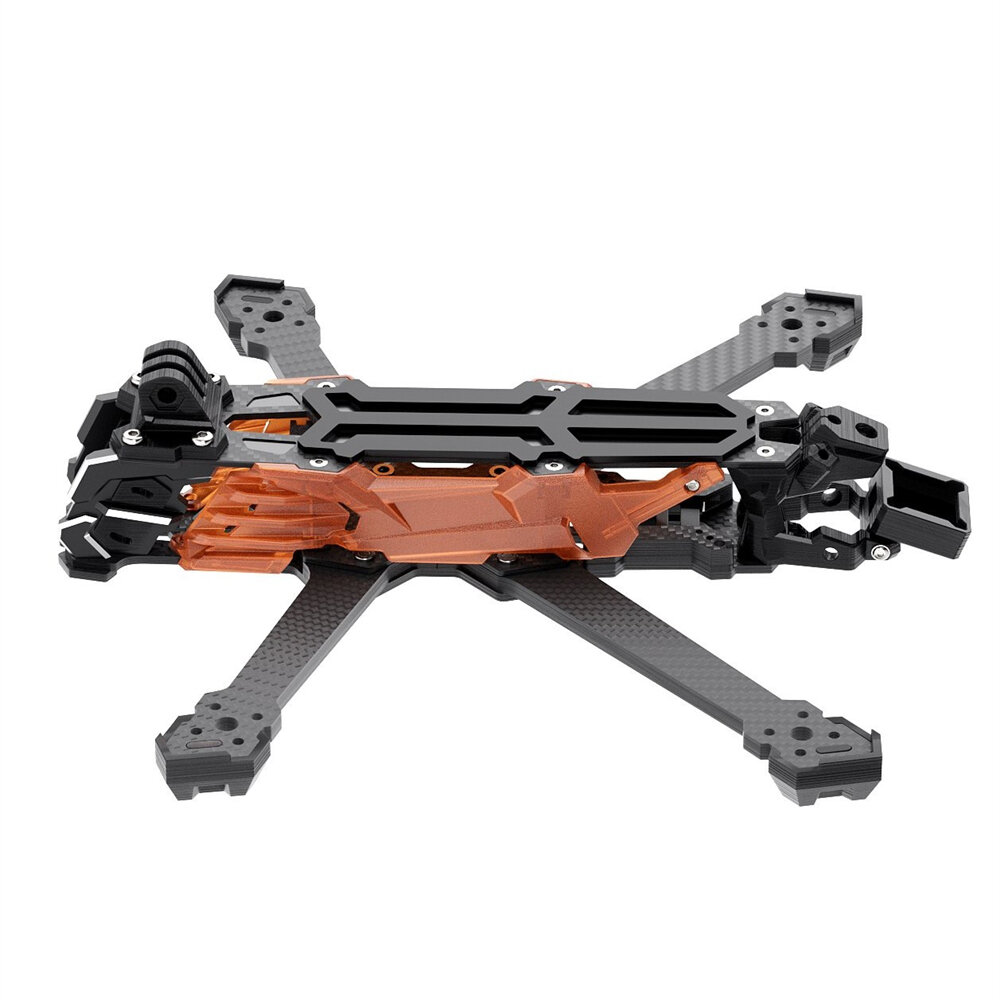

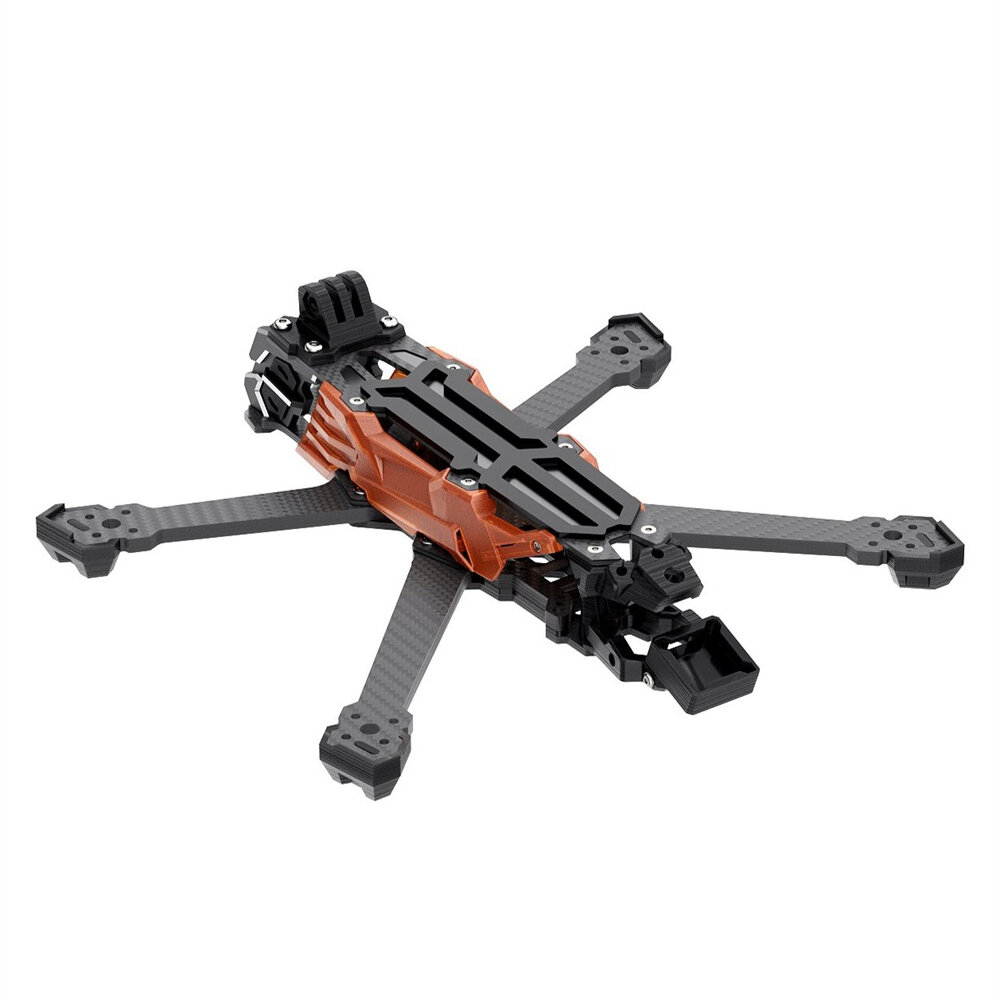

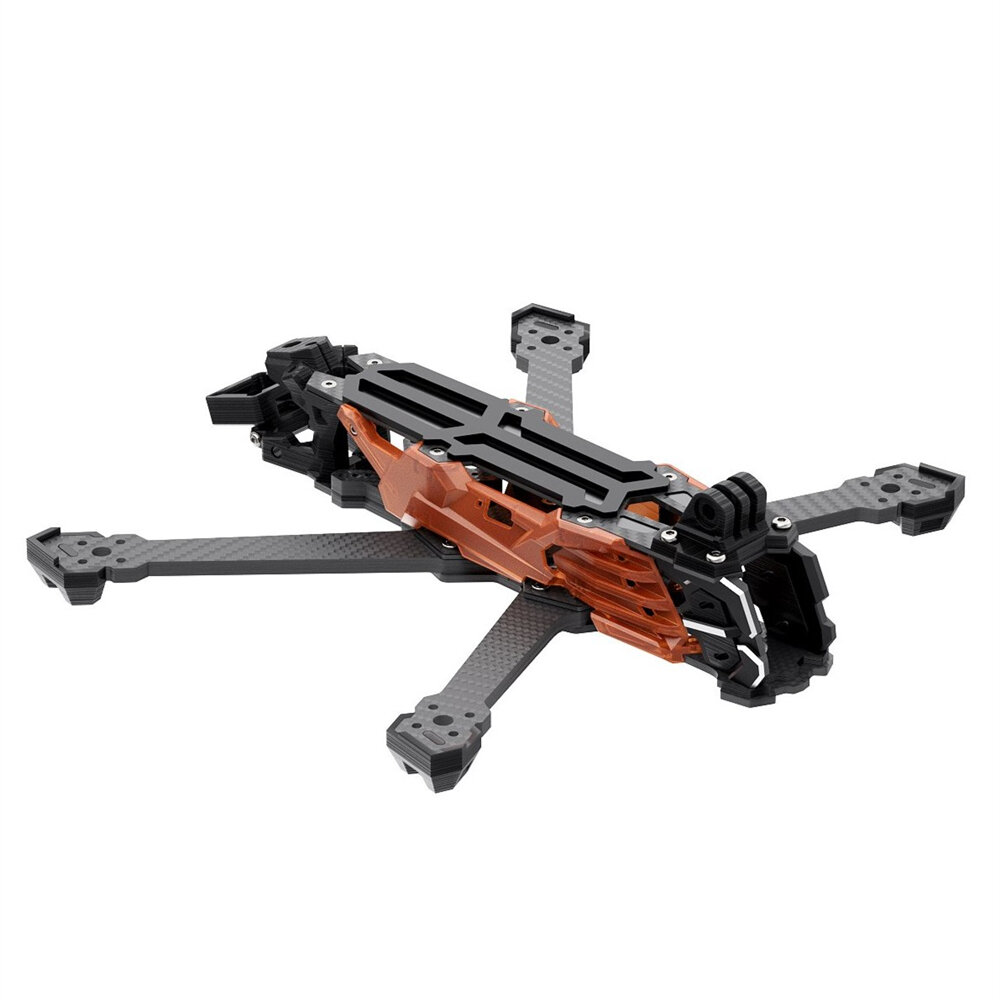

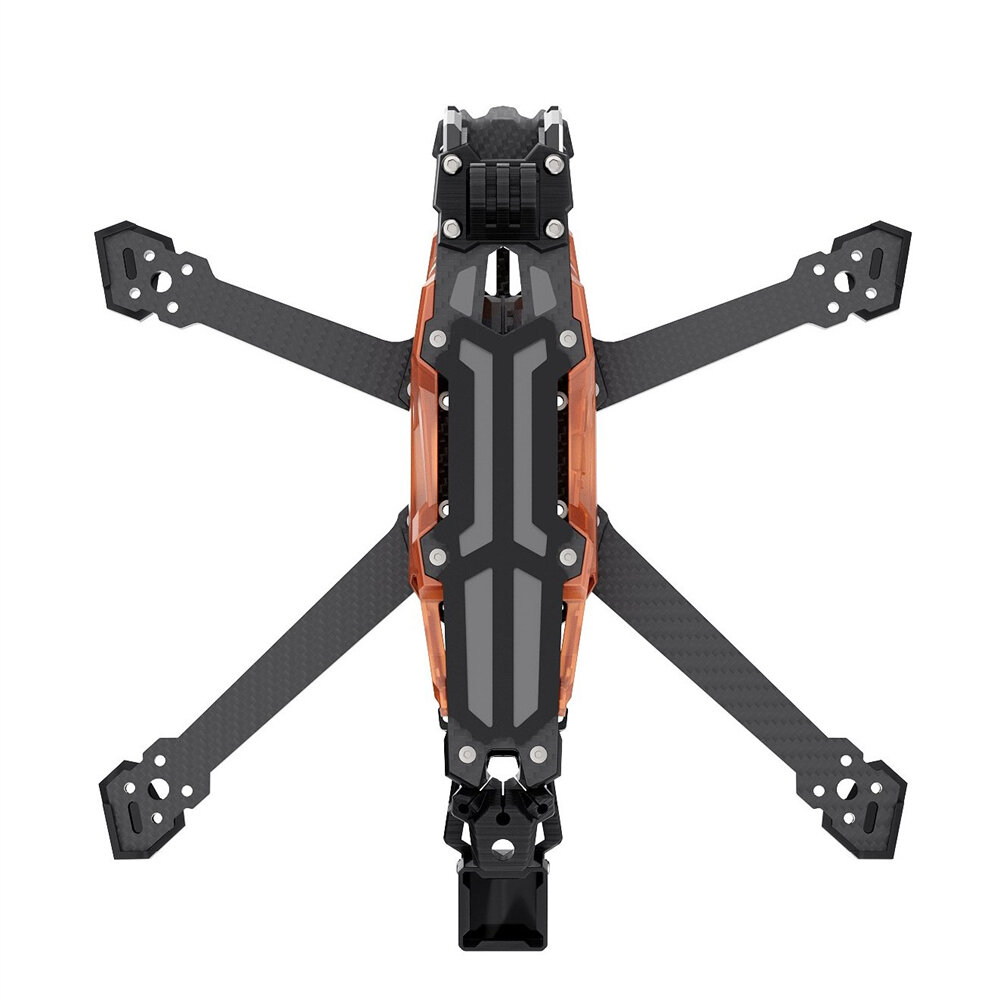

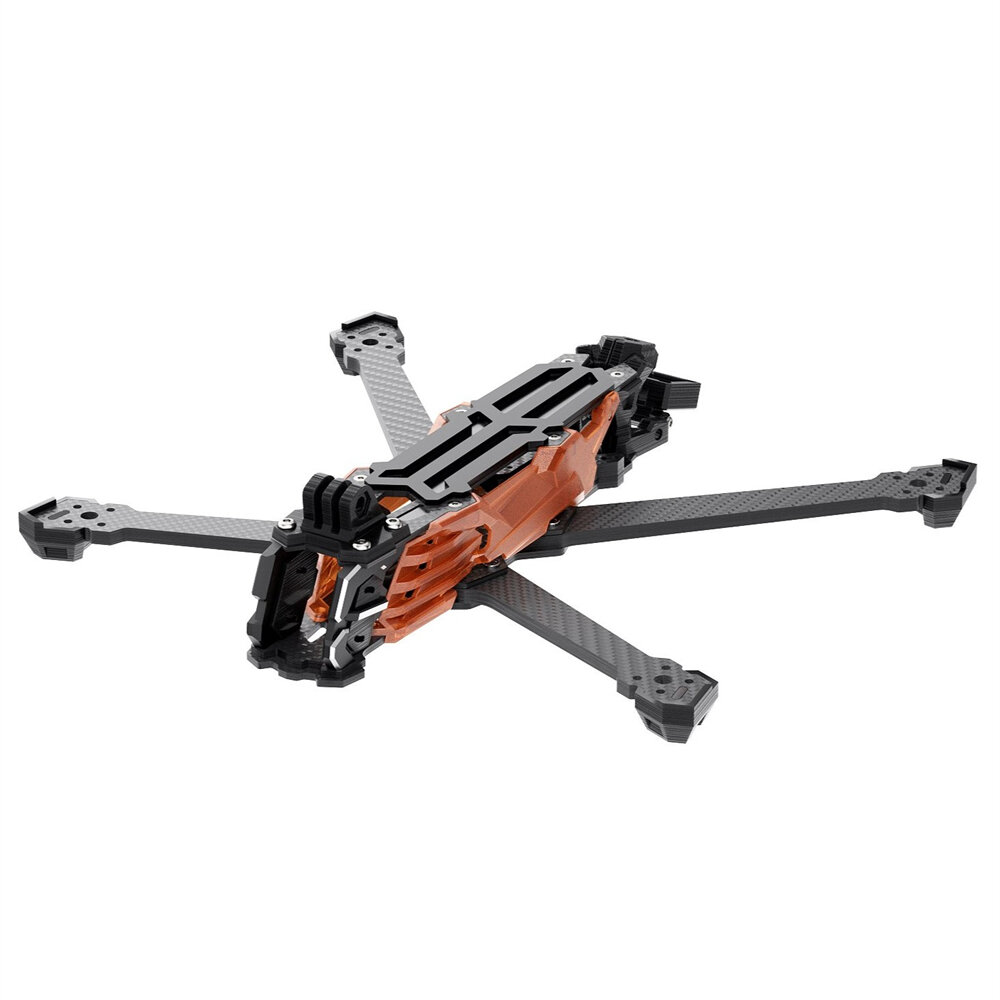

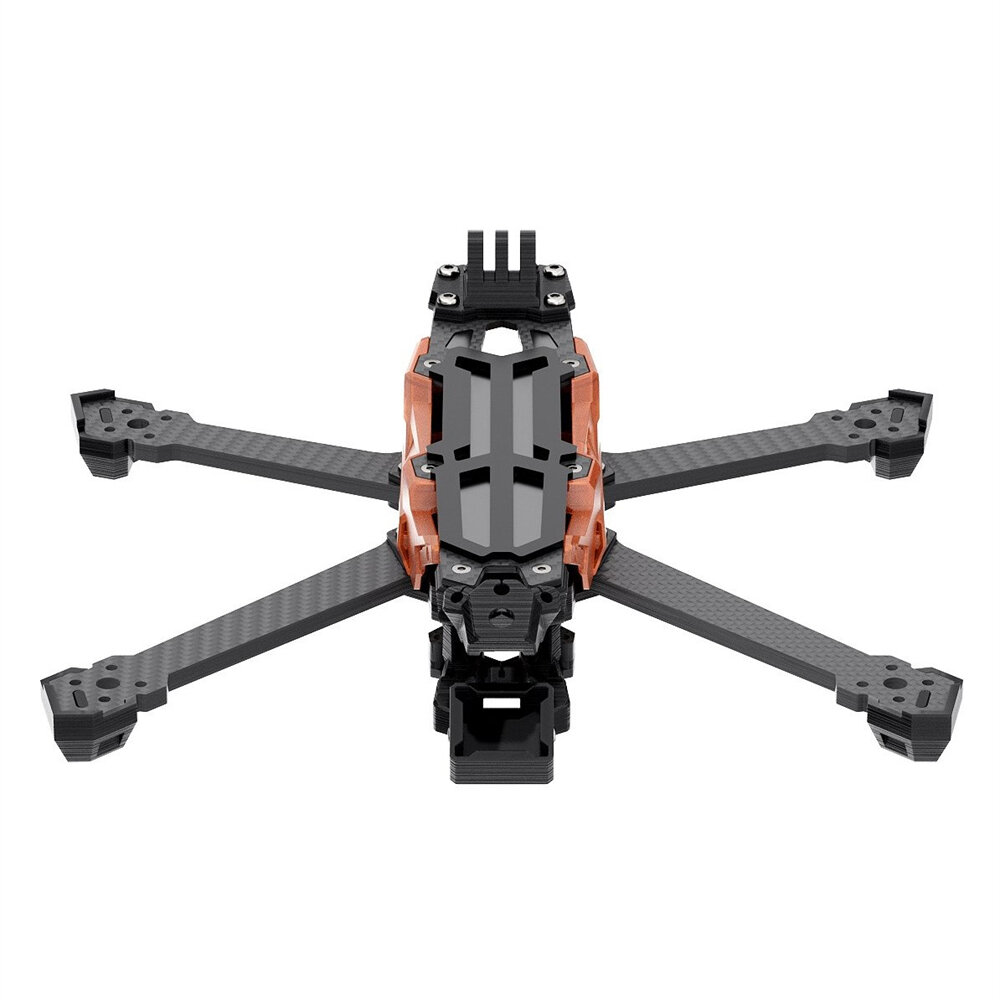

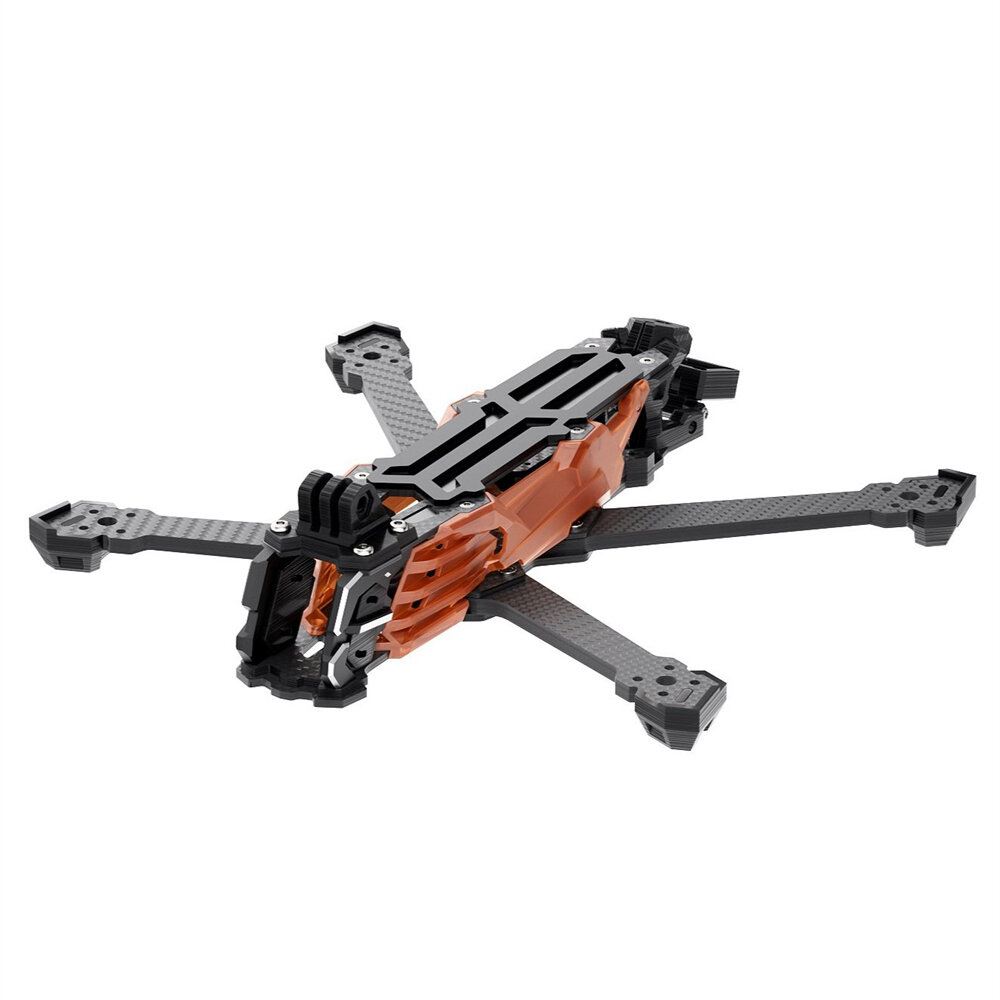

The GEPRC Vapor-D frame is designed for the DJI O4 Air Unit Pro.
It features redesigned aluminum camera mounts and vibration-damping silicone for better compatibility and reduced resonance.
The sleek side panels highlight its mech-inspired design.
With a DC structure, it provides interference-free footage and smooth flight. Built from high-strength carbon fiber, itu2019s lightweight, durabl, and performs reliably in all conditions.
The GEP-Vapor-D O4 Pro ensures clean footage and dependable flight for aerial filming.
Features:
1. 5mm wide carbon fiber arms for better rigidity and durability.
2. Dual protection with camera guard side panels and a front lip design for better impact resistance.
3. Available in both 5-inch and 6-inch options to cater to every pilotu2019s flying preferences.
4. Quick-release design for easy repairs and maintenance.
5. Redesigned aluminum lens mount, perfectly matched to the O4 Pro VTX.
6. New mech-inspired side panels with a bolde, sharp design.
7. Rear antenna mount supports both the original O4 Pro antenna and SMA adapters.
8. Clear footage with no prop in view and agile flight with DC frame.
Specification:
Brand: GEPRC
Model: Vapor D5 / D6
Item Name: 5 Inch / 6 Inch 6S rame Kit
Type: DC
Model: | Vapor D5 Frame | Vapor D6 Frame |
Wheelbase: | 238.4mm | 274.6mm |
Recommended Propeller: | 5 Inch | 6 Inch |
Weight: | 221±5g | 224±5g |
Top Plate Thickness: | 2.0mm | |
Middle Plate Thickness: | 2.0mm | |
Arm Thickness: | 5.0mm | |
Bottom Plate Thickness: | 2.5mm | |
FC Mounting Hole Size: | 20x20mm / 30.5u00d730.5mm | |
VTX Mounting Hole Size: | 20x20mm / 25x25mm / 30.5u00d730.5mm | |
Motor Mounting Hole Size: | 16x16mm | |
Camera Mounting Hole Size: | 19mm / 20mm | |
Recommand Pars (Not Included):
FC&ESC: Geprc TAKER F722 BLS 60A V2 Stack
Camera&VTX: DJI O4 Air Unit PRO
Motor: GEPRC SPEEDX2 2207 1960KV / GEPRC SPEEDX2 2407E 1750KV
Propellers: GEMFAN 5136 / HQprop 6X3.5X3
Battery: GAONENG GNB 6S 22.8V 1300mAh / CNHL MiniStar 22.2V 1800mAh 120C 6S LiPo Battery / CNHL Black Series V2.0 6S 22.2V 1500mAh
GPS: GEP-M10 GPS
Package Included:
Model | Included |
Vapor D5 Frame Kit | 1 x Vapor D5 Frame 2 x M20*250mm battery straps 2 x Battery Silicone Pads 1 x Set of screws 1 x Printouts pack 1 x L-shaped screwdriver (1.5mm) 1 x L-shaped screwdriver (2mmuff09 1 x L-shaped screwdriver (3mm) 1 x M8 wrench |
Vapor D6 Frame Kit | 1 x Vapor D6 Frame 2 x M20*250mm battery straps 2 x Battery Silicone Pads 1 x Set of screws 1 x Printouts pack 1 x L-shaped screwdriver (1.5mm) 1 x L-shaped screwdriver (2mm) 1 x L-shaped screwdriver (3mm) 1 x M8 wrench |
