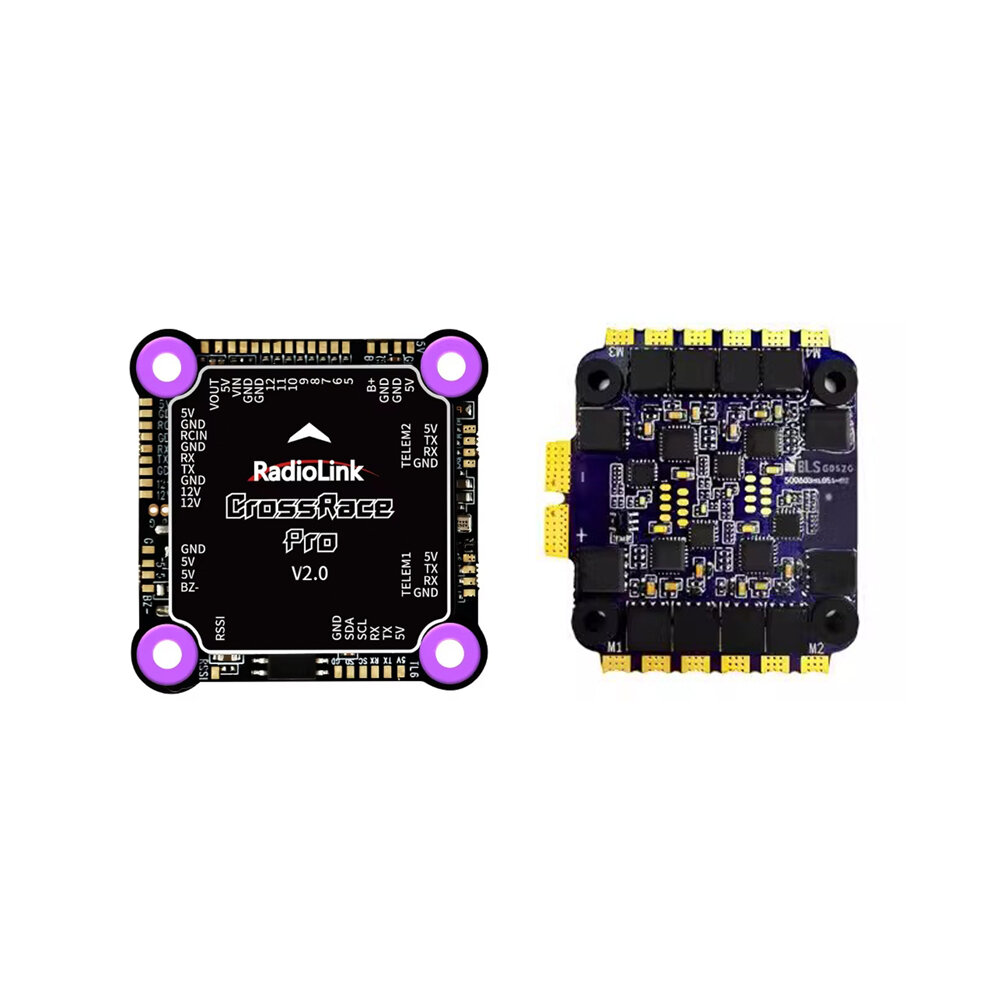

30.5*30.5mm Radiolink CrossRace Pro Flight Controller Built-in OSD & 3-6S BLS 4in1 55A ESC Stack for RC FPV Racing Drone
Direct purchase from the factory
Sikker betaling
Gratis gave
Leveringspolitikk
ReturpolitikkGratis Gave
Velkommen til Roymall, din profesjonelle netbutikk for premium gaver. Vi setter stor pris på din støtte, og som takk tilbyr vi en gratis gave med hvert kjøp. Klar til å utforske vårt utvalg? Bla gjennom våre produkter, legg inn din bestilling, og se frem til å motta din gratis gave sammen med kjøpet.Leveringspolitikk
Vi behandler bestillinger innen 2 dager. Bestillinger lagt inn i helger eller helligdager vil bli behandlet de følgende virkedagene.Normal leveringstid er 5-7 virkedager.Leveringstid kan variere avhengig av destinasjon.1. Returpolitikk
Vi godtar kun returer på varer kjøpt direkte fra roymall.com. Gratis gaver kan ikke returneres. Varen må være ubrukt og i original emballasje.Returer behandles innen 3-5 virkedager etter mottak.Tilpassede varer kan ikke returneres.Kontakt oss: service@roymall.com eller Whatsapp: +86193598494712.Refusjonspolitikk
Full refusjon gis etter mottak og kontroll av returvaren. Fraktgebyrer refunderes ikke.Kontakt oss ved spørsmål: service@roymall.com eller Whatsapp: +8619359849471Specification:
Brand: Radiolink
Model: CrossRace Pro
Item Name | |
Flight Controller | Main Processor: STM32H743 Flight Control Execution Rate: 1000HZ Chip Main Frequency: 480MHZ Gyroscope & Accelerometer: BMI270 Barometer: SPL06 Flash Memory: 128M internal storage, maximum of 2617 waypoints for multicopters Buzzer: 1 Safety Switch: None Connector Types: Socket Connector and Solder Plate Combination ESC Interface: 10PIN ESC interface, supporting voltage and current monitoring, and ESC telemetry BEC: Built-in 5V & 12V dual-route BEC Output Channels: 12-way output channels Mavlink UART Interface: 2 (no hardware flow control) USB Interface: 1 (Type-C) GPS UART Interface / I2C Interface: 1 RC Signal Type: PPM/SBUS Digital Video Transmission Interface: Supports DJI O3 and AV video transmission RSSI Signal Extraction: Supported Video OSD: Supported, with built-in video OSD module Supported ESC Protocols: PWM/DShot Protocol/OneShot Protocol RTK: Supported Input Voltage: 2-6S Input Current: 5A Relay (12V BEC Control): Supports RC channel control for 12V BEC interruption Supported Models: 2-8 axis multi-rotors Operating Power Supply: USB power supply 5V±0.3V Operating Temperature: -30~85°C |
BLS 4in1 55A ESC | Continuous Current: 55A BEC: No LiPo Cells: 3-6S Weight: 15.8g Dimensions (reference): 45x41x5.8mm Mounting Hole: 30.5x30.5mm, M3 Configuration Software: Bluejay configurator or BLHeliSuite Firmware: A-H-30 |
Feature:
- Ultra-high performance flight control system
Equipped with STM32H743 main processor, running frequency 1000Hz, with BMI270 gyroscope, providing extreme flight response speed and stability
- 55A high current 4-in-1 ESC
BLS 4-in-1 ESC supports 55A continuous current, 3-6S input voltage, designed for high-performance FPV racing drones
- Built-in OSD module
Integrated professional-grade OSD display function, supports digital image transmission systems such as DJI O3, no additional wiring required
- Dual-channel BEC power supply system:
Built-in 5V and 12V dual-channel BEC power supply, maximum support 3A output, providing stable power for various peripherals
- Professional expansion interface
Provides 12-channel PWM output, 2 Mavlink UART interfaces, GPS/I2C interface, supports RTK and multiple ESC protocols to meet professional needs

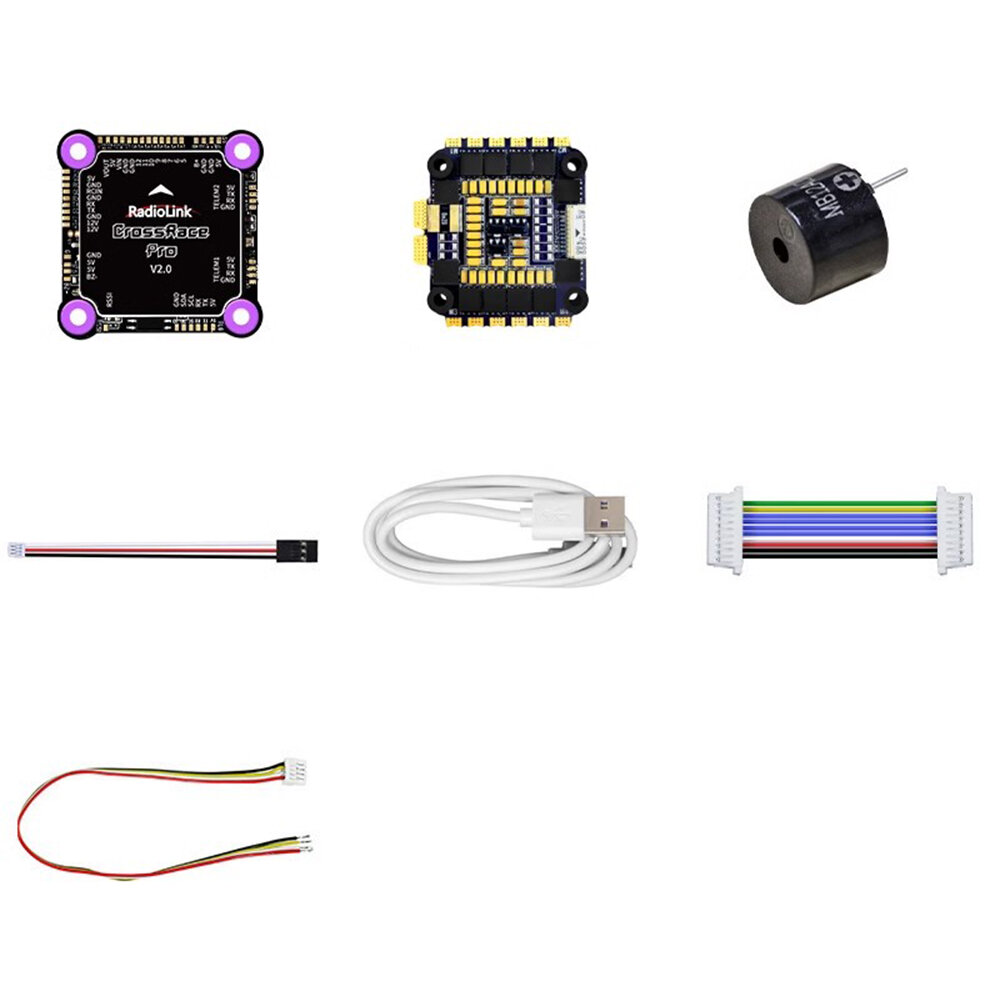

Package Included:
1x Flight Controller
1x ESC
1x Buzzer (must be welded)
2x TELEM1 and 2 Ports Connection Cable
1x USB Cable (upgrade or configuration)
1x ESC Four Connection Cable in One
1x Receiver Connection Cable mso-bidi-font-family:"Times New Roman";font-size:10.5000pt;mso-font-kerning:1.0000pt;">
mso-bidi-font-family:"Times New Roman";font-size:10.5000pt;mso-font-kerning:1.0000pt;">1x Packaging Box
